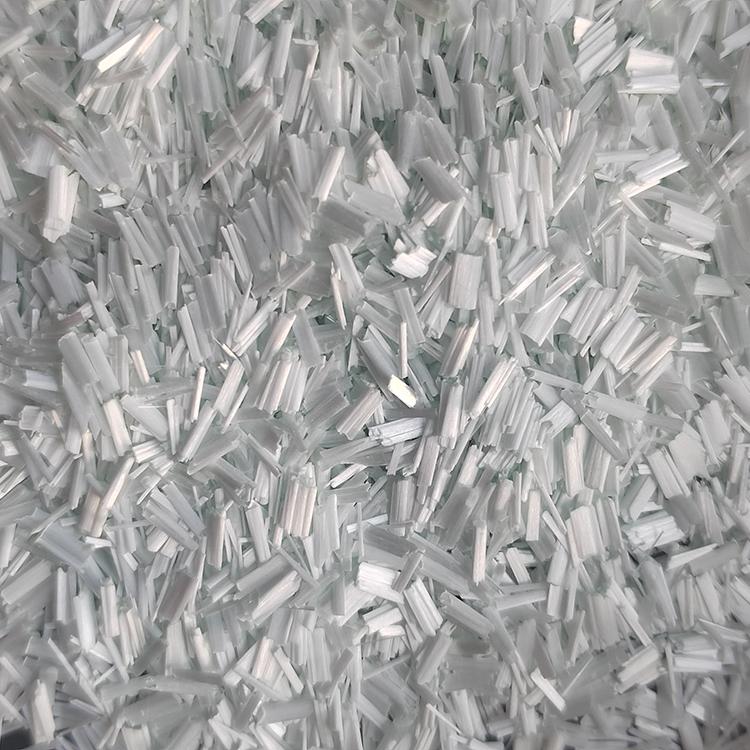

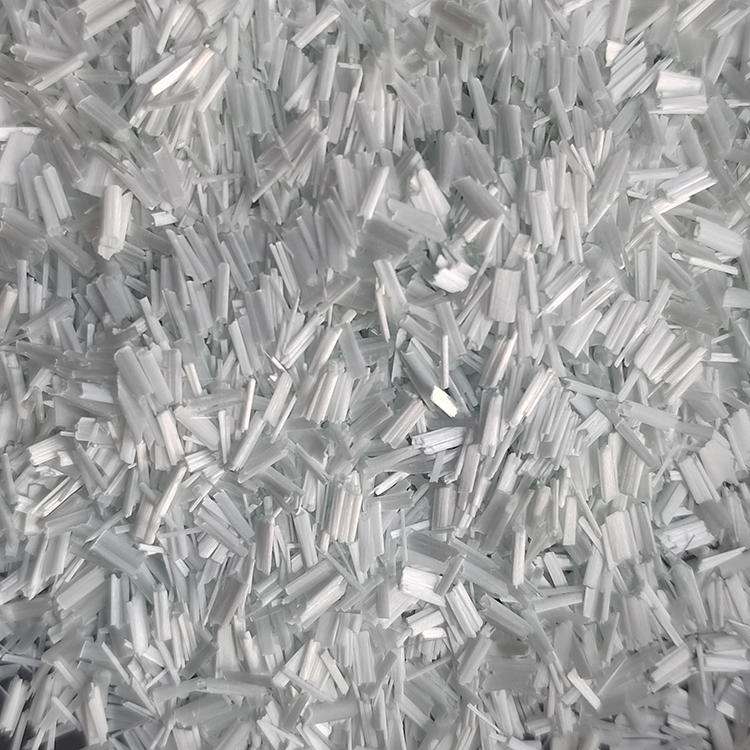

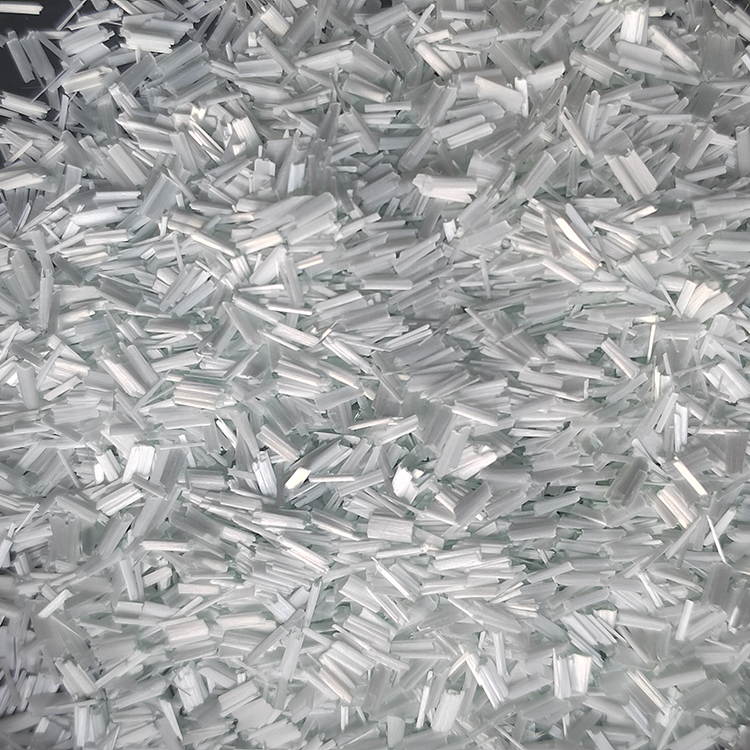

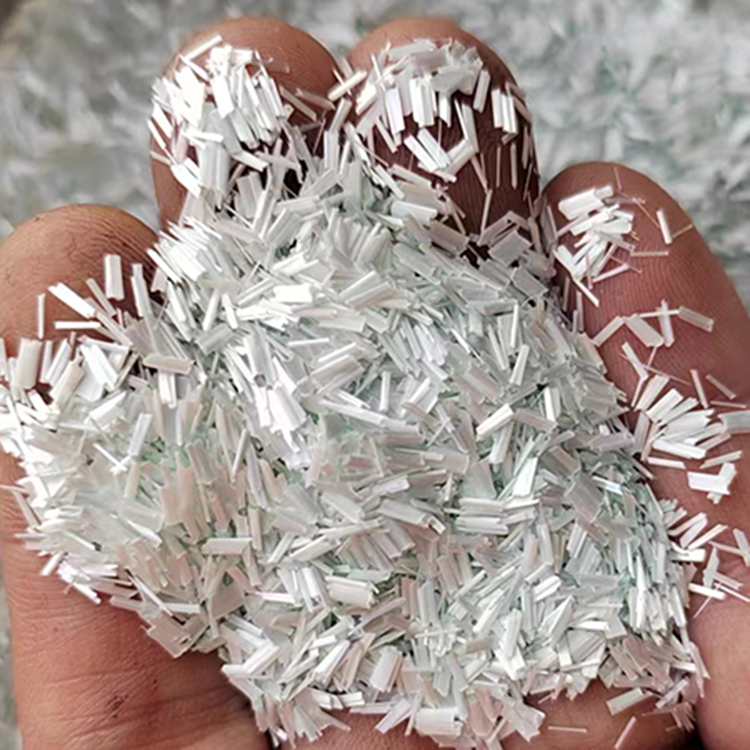

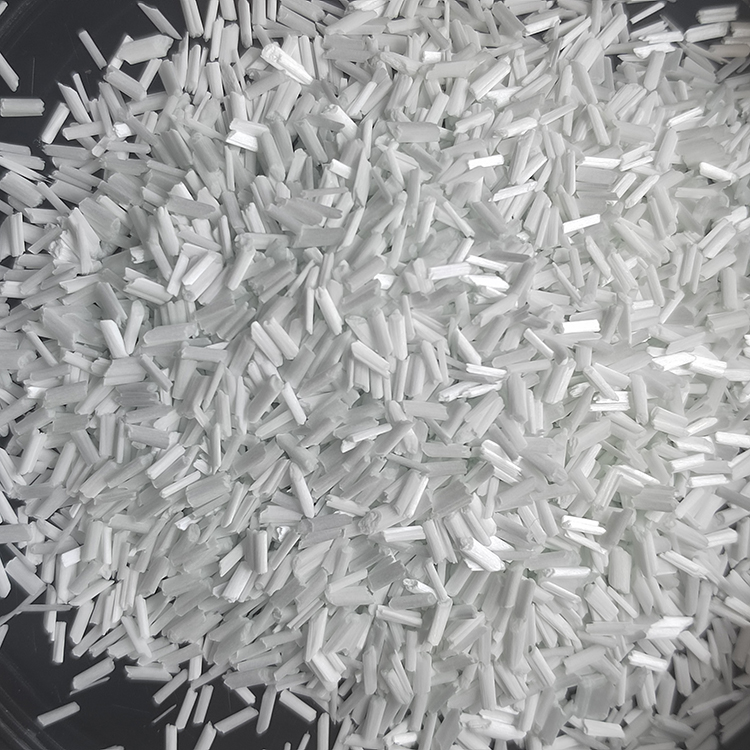

Chopped Strands Specifications: Diameter: 10μm, 11μm, 13μm, 14μm Length: 3mm, 4.5mm Description: These chopped strands are made from E-glass continuous filaments and are precision-cut to uniform lengths. The product features consistent fiber diameter, excellent dispersion in thermoplastics, and is suitable for reinforcement in compounding applications.
Chopped Strands For Thermoplastics:
Chopped Strands for thermoplastics is coated with silane-based agents and special wetting agent. It has good compatibility with PA, PBT, LCP, PEEK, PET, PP, AS, ABS, PC, PPS, M-PPO and other matrix resins, excellent cohesion and fluidity, and good molding and processing performance. It can give the composite excellent mechanical properties and surface state.

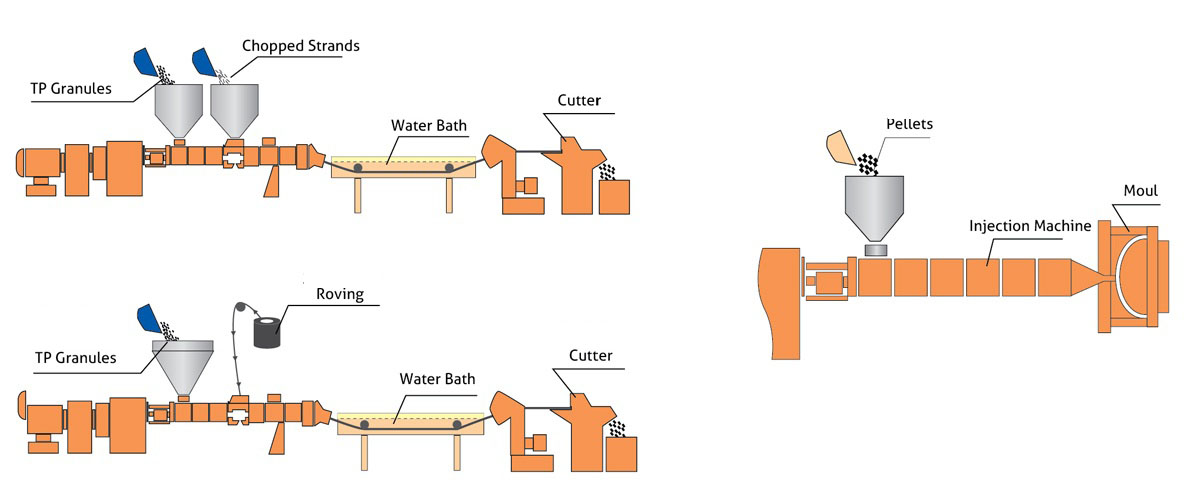

Extrusion and Injection Process:
The reinforcements(glass fiber roving or chopped strands) and thermoplastic resin are mixed in an extruder. After cooling, they are chopped into reinforced thermoplastic pellets. The pellets are fed into an injection molding machine to form finished parts.
1. Automotive
2. Consumer Goods and Business Equipment
3. Sports and Leisure
4. Electrical and Electronics
5. Building and Construction
6. Infrastructure
| Product Code | Resin Compatibility | Product features | Data Download |
| 508A | PP, PE | Standard product | 508A DATA |
| 508C | PP, PE | Excellent product color and hydrolysis resistance | 508C DATA |
| 510 | PC | Standard product, excellent mechanical properties, good color | 510 DATA |
| 510H | PC | Super high impact properties, glass loading below 15 wt.% | 510H DATA |
| 534A | PBT, PET, ABS, AS, PS | Standard product | 534A DATA |
| 534C | PBT, PET, ABS, AS, PS | Good dispersion, white color | 534C DATA |
| 540H | m-PPO | Standard product, excellent hydrolysis resistance | 540H DATA |
| 560A | PA | Standard product for PA6,PA66 | 560A DATA |
| 568H | PA | Suitable for PA6, PA66, PA46, HTN and PPA, Excellent glycol resistance and super high temperature resistance | 568H DATA |
| 584A | PPS,LCP,PEEK | Excellent hydrolysis resistance | 584A DATA |
| EMG13-125C | All Resins | Compatible with all resins, high strength and easy dispersion | EMG DATA |
